SIMCom 4G Module SIM7100E SIM7600E SIM7500 SIM7100 SIM7600 L860-GL-16 L850-GL

Ask Lasest Price
Model Number :	SIM7100
Brand Name :	SIMCOM
Supply Ability :	5000 Piece/Pieces per Week
Price :	$19.80/pieces 2-99 pieces

Add to Cart

Product Details
Company Profile

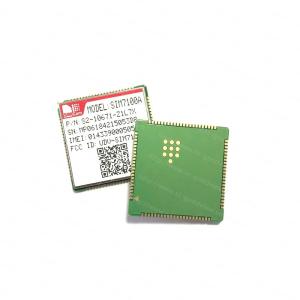

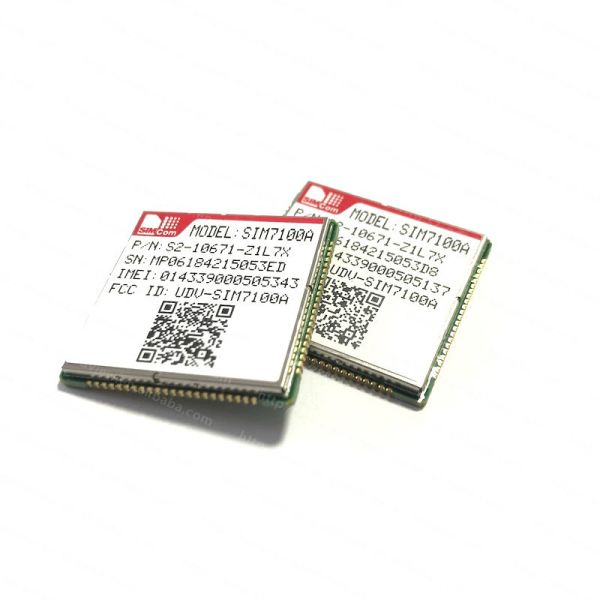

SIMCom 4G Module SIM7100E SIM7600E SIM7500 SIM7100 SIM7600 L860-GL-16 L850-GL

SIMCom 4G Module, SIM7100E SIM7600E SIM7500 SIM7100 SIM7600 L860-GL-16 L850-GL

Products Description

Product Name	SIM7100E
Application	Wireless Module
Warranty	1 Year
Package	Standard

SIMCom 4G Module SIM7100E SIM7600E SIM7500 SIM7100 SIM7600 L860-GL-16 L850-GL

SIMCom presents an ultra compact and reliable wireless module SIM7100E which is based on QC MDM9215 multiple- mode LTE platform. SIM7100E is a complete multi-band TDD-LTE/FDD-LTE/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant
application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.

General features
• Five-Band FDD-LTE B1/B3/B7/B8/B20
• Dual-Band TDD-LTE B38/B40
• Dual-Band UMTS/HSDPA/HSPA+ B1/B8
• Dual-Band GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40 to +85
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.8g
• GNSS: gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer
• LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps
• HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• EDGE Class:
- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call

Other features
• USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8
• USB Driver for Windows CE
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE
• Automatic installation for windows
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device
for reference

Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• ADC
• PCM *
• SDIO

Certifications
• CE ( ongoing )
• ROHS
• REACH
